CURT 60628 30K Factory Style 3-Inch Gooseneck Ball; Fits Select Chevrolet Ford; GMC; Nissan Titan XD; Ram; Puck System Required
Outfitting your pickup to tow a heavy-duty flatbed or livestock trailer is easy with the CURT OEM puck system gooseneck ball. Like our OEM puck system safety chain anchors, this 30K gooseneck ball utilizes the puck system built into certain pickup trucks today with the towing prep package. It features a patented installation system, operating with a simple quarter-turn latch lock for ease of use and a secure mount. Retention balls, built into the shank, keep the gooseneck ball fixed into the receiver hole and keep your trailer locked on tight. It provides a ball diameter of 3 in. and has a gross trailer weight capacity of 30,000 lbs. It also comes with a durable chrome finish and meets U.S. V-19 specifications for safety. This particular OEM puck system gooseneck ball is compatible with Chevrolet, Ford, GMC, Nissan Titan XD and Ram pickups with the truck bed puck system. It is not designed to fit any other gooseneck ball holes.
- Fits Ford Gm Nissan Or Ram Pickups w/OEM Truck Bed Puck System
- 3 in. Gooseneck Ball Installs Easily w/Quarter-Turn Latch System
- Retention Balls Keep The Shank Fully Locked Into The Hitch
- Constructed From Strong Machine-Forged Steel Alloy
- Protected By A Polished Chrome-Plated Mirror Finish
- Tested For Safety To Meet U.S. Vesc V-19 Specifications
- Limited Lifetime Warranty; One-Year Finish One-Year Parts
Information:
Fits the Chevrolet, Ford, GMC, Nissan Titan XD and Ram puck system; Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load; 3 gooseneck ball installs easily with quarter-turn latch system; Retention balls keep the shank fully locked into the hitch; Forged and machined steel gooseneck ball with chrome-plated finish; Tested for safety to meet U.S. VESC V-19 specifications; Limited lifetime warranty (one-year finish, one-year parts); OEM Puck System 3 Gooseneck Ball, Chevrolet, Ford, GMC, Nissan, Ram (30K)
Application Summary:
| Year |
Make/Model |
| CURT |
60628 30K Factory Style 3-Inch Gooseneck Ball, Fits Select Chevrolet Ford, GMC, Nissan Titan XD, Ram, Puck System Required |
| Attributes |

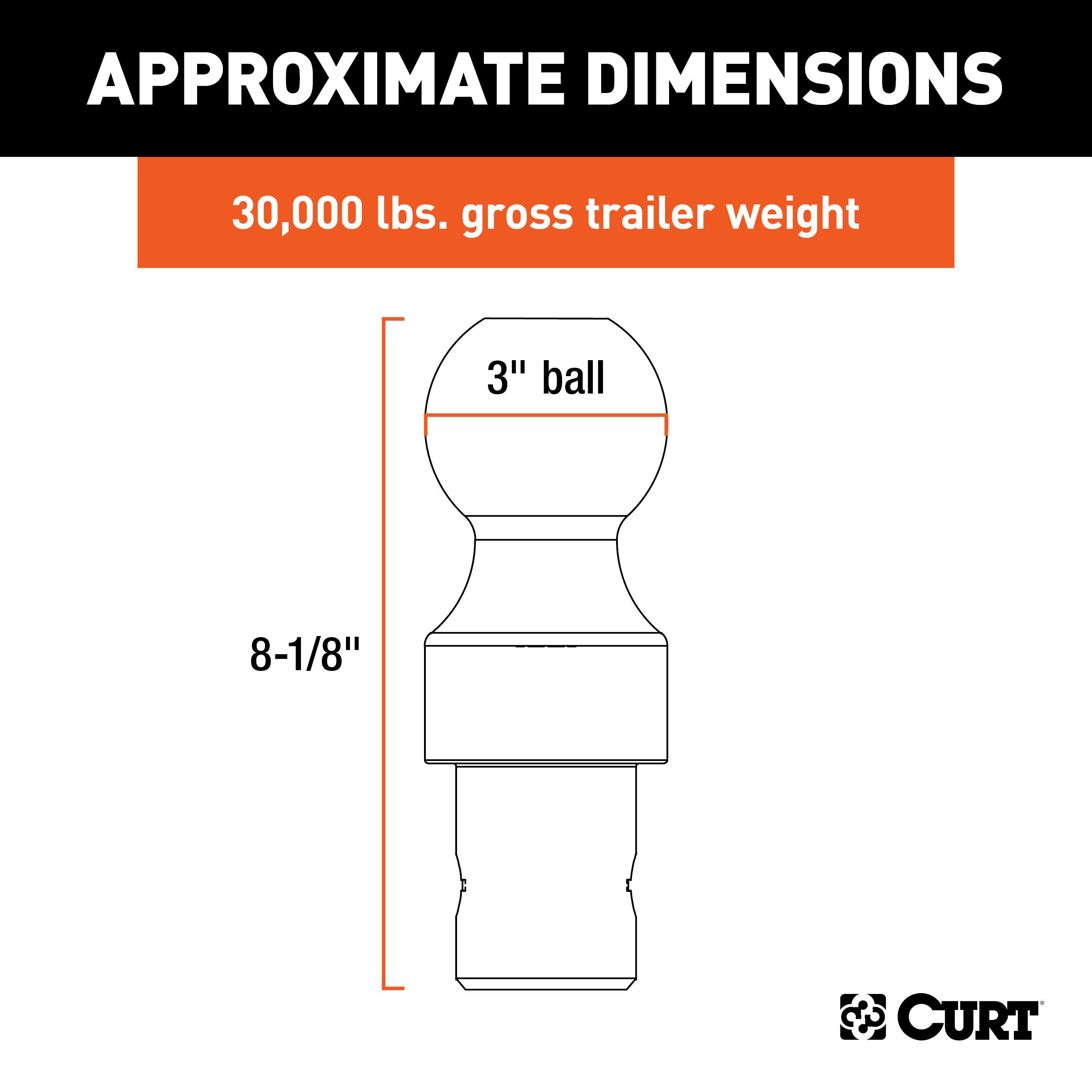

| Ball Diameter |
3 IN, 3.000 in. |
| Ball Diameter (in.) |
3 |
| California Proposition 65 |
Yes |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
CN |
| Emission Code |
Legal US |
| Finish |
Chrome Plated |
| Finish - XA |
CHROME-PLATED |
| GTIN |
00612314606283 |
| Gooseneck Hitch Type |
Ball |
| Gross Trailer Weight |
30000 lbs. |
| Gross Trailer Weight (GTW) |
30,000 LB |
| Gross Trailer Weight (lbs.) |
30000 |
| Gross Trailer Weight(GTW) |
30,000 LB |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Life Cycle Status Code |
Available to Order |
| Master Case Height Inches - XA |
0.000 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| NAFTA Preference Criterion Code |
B |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Rate Class - XA |
70.0, 77.5 |
| Retail Height - XA |
7.500 |
| Retail Length - XA |
9.250 |
| Retail Width - XA |
7.500 |
| Rise |
1-5/8 IN |
| SDR Required Flag |
N |
| Sales Family Code - XA |
GOOSE |
| Sales Family Description - XA |
GOOSENECK |
| Sales Group Description - XA |
GOOSENECK PART |
| Shipping Weight - XA |
10.600 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Vertical Load |
7,500 LB, 7500 |
| Vertical Load Capacity |
7,500 LB |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
