CURT 48625 SecureLatch Channel-Style Lunette Ring; 25;000 Pounds; 3-Inch ID

---

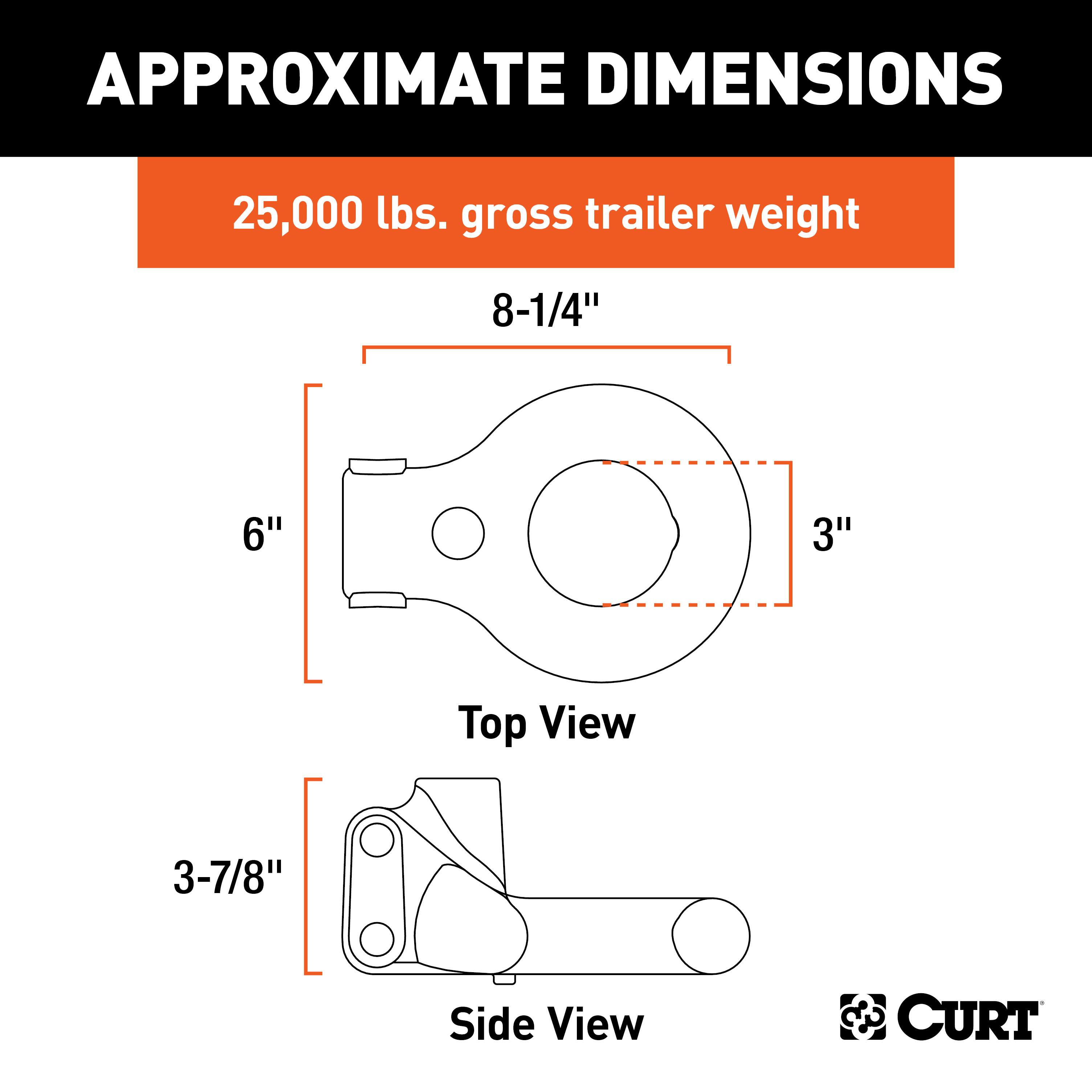

The CURT SecureLatch lunette ring offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers maximum height adjustment, featuring an offset base. The ring can be flipped for more drop or rise as needed. The CURT SecureLatch lunette ring is intended to fit an 11-3/4-inch x 3-inch inside width channel (sold separately). It has a two-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 25,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from cast iron for dependable strength, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.

• Drop-In Pin Accepts Lock To Deter Theft
• Vertically Offset Base Allows Ring To Be Flipped For Max Height
• Heavy-Duty 2-Hole Bolt Pattern Fits 11.75x3 in. Channel Only
• Rated For 25000 lbs. Gross Trailer Weight
• 3in. Inside Dia. Fits Pintle Hooks/Ball And Pintle Combinations
• Cast Iron Construction Is Austempered For Superior Strength
• Textured Dark Grey Teridium Finish For A Premium Look

---

Information:

Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled); Vertically offset base allows ring to be flipped for maximum height adjustment; Strong 2-hole bolt pattern fits 11-3/4 x 3 I.D. channel (sold separately); Rated for 25,000 lbs. gross trailer weight; 3 inside diameter fits pintle hooks, ball & pintle combinations or clevis bars; Cast iron construction for dependable strength; Textured, dark grey teridium powder coat for a premium finish; Bright gold zinc-plated pin for long-lasting corrosion resistance; Limited lifetime warranty (one-year finish, one-year parts); SecureLatch Channel-Style Lunette Ring (25,000 lbs, 3 ID)

---

Application Summary:

Year	Make/Model
CURT	48625 SecureLatch Channel-Style Lunette Ring, 25,000 Pounds, 3-Inch ID
